Product Code: ZUBPF-400520
$1,894.99
3 in stock

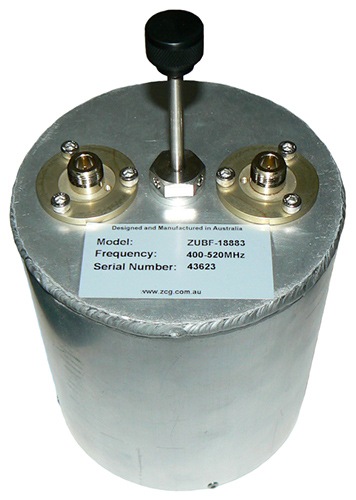

The ZUBF-18883 UHF single band-pass cavity filter is our fully-australian manufactured UHF cavity filter for utilisation within the UHF frequency range 400-520 MHz. The ZUBF-18883 UHF cavity filter will greatly reduce unwanted signal transmission from your UHF system. The ZUBF-18883 compact design can be mounted into a transmission hut, rack or can be mobile mounted inside your vehicle using appropriate mounting hardware.
| Frequency | 400-520 MHz - UHF |
|---|---|
| Bandwidth | Specify any 300 kHz when ordering |
| Maximum Power | 100 Watts |
| Impedance | 50 Ohms - nominal |
| Polarisation | Can be 19" rack mounted vertical or horizontal or any flat s |
| Construction | Anodised aluminium outer, INVAR internals and PTFE insulators |
| Connector | Input: N-type female, Output: N-type female |
| Tuning | Factory at 1.2:1 VSWR, can be field re-tuned if required usi |
| Dimensions | Height: 160mm, Diameter: 150mm |
Australian owned & manufactured, high quality RF solutions since 1970
Experienced, knowledgeable in-house sales consultants and technical support
Quality certified and reliable, trusted product support
