Product Code: NM-7937
$22.99
18 in stock

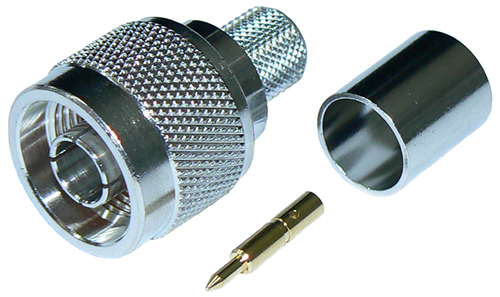

The NM-7937 is a N-type male, solder pin, crimp plug coaxial connector for MIL-SPEC RG213, stranded core, solid PE dielectric coaxial cable (SKU: 7800-100/7803-300). Alternatively the centre pin can be crimped. Hex Crimp required: Sleeve: 0.429" (10.9mm) and Pin: 0.100" (2.54mm)
| Frequency | DC to maximum 11 GHz |
|---|---|
| Maximum Power | 500 Watts, 1kW peak |
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - solder pin, crimp-style |
| Construction | Tri-metal plated body and crimp sleeve, gold plated centre pin and PTFE insulator |
| Connector | N-type male / N-male |
| Dimensions | Face dia: 21mm, Body Length: 29.2mm, Crimp sleeve length: 15 |
