Product Code: NM1250
$28.99
17 in stock

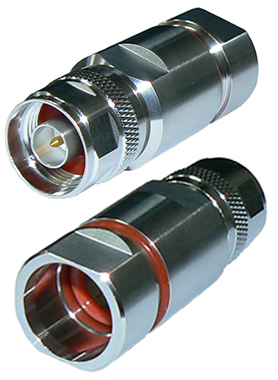

The NM1250 is a N-type male solder pin, clamp-style, low passive intermodulation connector for 1/2" corrugated shielded, foam dielectric, solid conductor coaxial cable, ZCG P/N ZCG1250. THe NM1250 is rated for a maximum of 500 mating cycles and is IP67 rated.
| Frequency | DC to maximum 2.4 GHz |
|---|---|
| Maximum Power | 500 Watts, 1kW - peak |
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - clamp-style |
| Construction | Tri-metal plated body and nut, gold plated centre pin and PTFE insulator |
| Connector | N-type male - 5/8"-24 UNEF-2B |
| Tuning | Factory at 1.1:1 VSWR |
| Dimensions | Length: 52mm, Diameter: 22mm |
