Product Code: NF-7939-2
$13.99
5 in stock

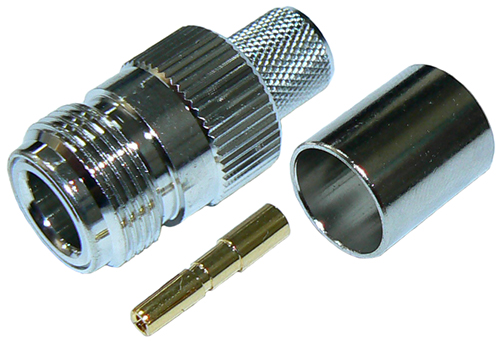

The NF-7939-2 is a N-type female solder pin, crimp connector for RG213 stranded core, solid PE dielectric coaxial cable (SKU: 7800-100/7800-300). The NF-7939-2 is a nickel plated model and is the standard N-type female for RG213 terminations. For reduced PIM requirements see the NF-7939 N-female tri-metal plated version.
| Frequency | DC to maximum 3 GHz |
|---|---|
| Maximum Power | 500 Watts - 1kW peak |
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - solder pin, crimp sleeve |
| Construction | Nickel plated outer body and crimp sleeve, gold plated centre conductor and PTFE insulator |
| Connector | N-type female / N-female |
