Product Code: NF-7939
$12.99
14 in stock

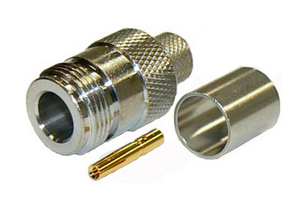

The NF-7939 is a N-type female solder pin, crimp connector for RG213 stranded core, solid PE dielectric coaxial cable (SKU: 7800-100/7800-300). The NF-7939 N-female connector is tri-metal plated for improved connectivity over a nickel plated model, better suited for low PIM specific requirements.
| Frequency | DC to maximum 11 GHz |
|---|---|
| Maximum Power | 500 Watts - 1kW peak |
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - solder pin, crimp sleeve |
| Construction | Tri-metal plated body and crimp sleeve, gold plated centre conductor and PTFE insulator |
| Connector | N-type female / N-female |
