Product Code: ZVBPF-88108
$2,757.99

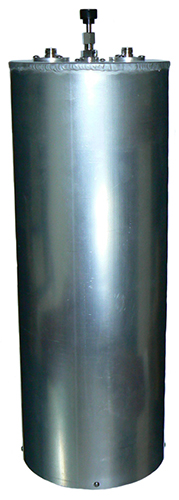

The ZVBF-88108 single cavity FM Radio band-pass filter is manufactured for use within the FM Radio 87.5-108 MHz frequency range, suitable for single channel FM radio broadcast systems. The ZVBF-88108 FM radio cavity filter can be retuned at the installation location for requirements where alternate frequency band-pass capability is required. ZCG proudly manufacture the ZVBF-88108 FM Radio bandpass cavity filter in our Australian manufacturing facility resulting in a express availability as well as the ability to customise to suit your requirements.
| Frequency | 87.5-108 MHz |
|---|---|
| Bandwidth | Specify any 200 kHz when ordering - can be field tune if alt |
| Maximum Power | 500 Watts |
| Impedance | 50 Ohms - nominal |
| Construction | Clear anodised aluminium outer body, internal invar tuning rod and PTFE insulators/supports and tri-metal plated N-female connectors |
| Connector | Input: N-type female, Output: N-type female |
| Tuning | Factory at better than 1.2:1 VSWR |
| Dimensions | Height: 800mm, Diameter: 203mm O.D. |
