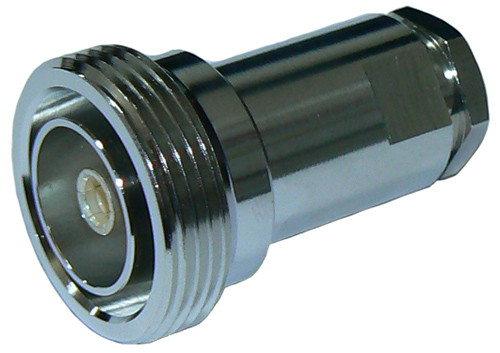

7/16″ DIN female clamp-type low P.I.M. connector for MIL-SPEC RG213 stranded core coaxial cable, DC-3 GHz, 50 Ohms – tri-metal plated

Name: 7/16" DIN female clamp-type low P.I.M. connector for MIL-SPEC RG213 stranded core coaxial cable, DC-3 GHz, 50 Ohms - tri-metal plated
SKU: 716DINF213
Price: 30.99 AUD
Availability: InStock

Product Code: 716DINF213

On back order - Average dispatch time for back ordered items is currently 2–4 weeks.

$30.99

The 716DINF213 is a 7/16" DIN female clamp style coaxial connector for MIL-SPEC RG213 stranded core, solid PE dielectric, coaxial cable (SKU: 7800-100/7800-300).

Frequency	DC to maximum 3 GHz
Maximum Power	2 Kilowatts / 2000 Watts - peak
Impedance	50 Ohms - nominal
Polarisation	Straight - solder pin, clamp-type
Construction	Tri-metal plated body and nut, silver plated centre pin and, PTFE insulator and silicone O-ring
Connector	7/16" DIN female / 7/16" DINF / 716DINF
Dimensions	Length: 44mm, Diameter: 28mm
